Eclipse Ditto is an open-source framework for building and managing digital twins of IoT devices. It acts as IoT middleware and integration platform that abstracts device access via standardized APIs. In essence, Ditto provides a central communication and data management layer for IoT, allowing disparate devices and applications to interoperate through their digital twins. This post introduces Eclipse Ditto’s core concepts, architecture, and why interoperability is crucial for digital twin solutions.
Why Interoperability Matters for Digital Twins
In IoT, devices often use different protocols and data formats, creating silos of information. Interoperability is the ability for systems to work together seamlessly – a critical requirement when building digital twins that integrate data from many sources. Digital twins serve as virtual representations of physical assets, consolidating data and events. If each twin only worked with a specific vendor’s devices or a single protocol, it would limit the insights and control you can achieve. By contrast, an interoperable twin layer lets you bridge multiple domains – from factory machines and city infrastructure to energy grids and even insurance telematics – under a unified API.
Eclipse Ditto was designed with interoperability in mind. It abstracts interactions with devices using APIs and a common JSON-based message format, so that applications don’t need to speak each device’s native language. Ditto can harmonize payloads from various devices into a common structure, or even apply script-based transformations for legacy formats. means a cloud application or AI service can work with any device’s twin in a uniform way, regardless of whether the physical device communicates via MQTT, HTTP, or other protocols. The result is an IoT solution where devices and software components become loosely coupled and highly interoperable, with Ditto managing the translation and routing in between.
What Is Eclipse Ditto?
Eclipse Ditto is essentially a digital twin communication layer for IoT. It allows you to create digital representations (twins) of physical devices or even logical entities, manage their state, and orchestrate communication between physical devices and cloud applications. Think of Ditto as a central hub in the cloud that connects the physical and digital worlds: devices update their twin in Ditto, and applications read or control devices by interacting with that twin.
At its core, Ditto provides:
-
Digital Twin Model: Each device (or asset) is modeled as a Thing in Ditto, with a unique ID. A Thing can have features which encapsulate properties (state data), telemetry events, or even commands. This model is flexible – you can define custom attributes and nested structures to mirror your device’s capabilities. The twin holds the device’s last known state and can also relay live messages to the device.
-
Standardized APIs: Ditto exposes REST HTTP APIs, WebSocket, and AMQP endpoints, plus defines its own JSON message format (Ditto Protocol) for devices/apps to communicate asynchronously. These APIs let applications create and modify twins, send commands, or subscribe to changes in a consistent way. This standardization ensures that different devices and apps can all work with twins without custom integration each time.
-
Policy-Based Access Control: Security is built-in via policies. A Ditto Policy provides fine-grained permissions (read/write) on resources (things, features, messages, etc.) to certain subjects (users, applications, or connections). Every API call or message in Ditto is authorized by these policies, ensuring that only allowed parties can read or control a given twin. This is crucial for multi-tenant IoT scenarios or when exposing twin APIs to third parties.
-
Connections for Device Integration: Rather than each device connecting directly to Ditto’s HTTP or WebSocket API, Ditto can connect to existing message brokers or cloud IoT hubs via its Connectivity service. A Connection in Ditto represents a communication channel to an external system (e.g. an MQTT broker, an AMQP exchange, or even another IoT platform), over which Ditto can consume or emit messages. Connections support one-way or two-way communication, enabling both data ingestion (device-to-twin) and command and control (twin-to-device) scenarios. Through connections, Ditto acts as a bridge: devices can stay on protocols like MQTT or Kafka, and Ditto will subscribe/publish on those channels to keep the twin state in sync and deliver commands.
-
Twin & Live Channels: A key concept in Ditto’s architecture is the separation of the twin perspective vs. live perspective. The twin channel refers to interactions with the persistent state of the twin - for example, updating a property stored in the twin, or reading the last reported value. Ditto processes these as state updates (and generates events/notifications). The live channel refers to direct messaging through the twin to the physical device, without persisting that data in the twin. In live communication, Ditto acts more like a router forwarding a command or request to the device (and enforcing access control) but not storing it. This dual approach is powerful: applications can either work with the twin’s stored state (which might reduce device communication and latency by using a cache of last-known data), or send real-time commands and queries to the device when up-to-date information or actuation is needed.
-
Notifications & Search Ditto can emit events when twin state changes, and it builds a search index on the twin data. Applications can subscribe to changes (via WebSocket or Server-Sent Events) to get real-time updates, or perform complex queries across all twins (e.g. find all devices of a certain type with a temperature above X). Notably, Ditto’s search can combine static metadata and dynamic sensor data in queries, enabling powerful fleet management use cases (like find all pumps in location X that reported pressure > Y in last hour). This capability highlights how an interoperable twin layer adds value beyond raw device data – it provides a unified, queryable view of your entire device ecosystem.
Overall, Eclipse Ditto “turns physical devices into services” accessible through APIs. Applications see a device’s twin as an always-available endpoint, even if the physical device is offline or communicating sporadically. If the device is offline, apps can read the last-known state from the twin; if the device is online, Ditto can forward live requests to it. This decoupling of application logic from device connectivity concerns is exactly what makes Ditto an interoperability layer – it decouples and mediates between different protocols, data schemas, and availability patterns in an IoT system.
Core Architecture and Scalability
Under the hood, Eclipse Ditto is built as a set of microservices that work together (typically deployed in the cloud, such as on Kubernetes). The major components include the
- Things Service (manages twin state in a MongoDB database),
- Policies Service (manages access policies),
- Gateway (exposes the HTTP and WebSocket APIs to clients),
- Connectivity Service (handles connections to external brokers/services),
- Optional services like Search (for indexing twin data).
This modular design means you can scale and configure Ditto based on your needs – you might run multiple instances of the Things service behind a load balancer to handle many devices, or omit the Search service if not needed. In fact, a minimal Ditto deployment can be just the Things + Gateway services with a MongoDB store. Other services can be added to extend functionality (e.g. add the Connectivity service when you need to integrate with MQTT, AMQP or other protocols). You can scale services horizontally and tailor deployments - from a minimal Things+Gateway+MongoDB setup to full production stacks. Ditto’s services use event-driven patterns (CQRS, event sourcing) for throughput and reliability. Proven at scale (e.g., Bosch IoT cloud) managing millions of devices across regions.
Protocol flexibility
Another hallmark of Ditto’s architecture. As noted, the Connectivity service allows bridging to various messaging systems. Out-of-the-box, Ditto supports MQTT 3.1.1/5.0, AMQP 0.9.1 (e.g. RabbitMQ), AMQP 1.0 (used by Azure Service Bus or Eclipse Hono), and even Apache Kafka as transport options. You can also configure HTTP-based webhook connections for simple integrations. This protocol-agnostic approach means Ditto can sit in the middle of almost any IoT deployment: whether devices communicate via an MQTT broker (like Eclipse Mosquitto or HiveMQ), or a cloud-specific hub, Ditto can connect and translate those messages into the common twin model. Conversely, when an application sends a command to a twin, Ditto can publish it out via the appropriate protocol to reach the device. The twin layer isn’t tied to MQTT (even though MQTT is commonly used) – you can mix and match protocols as needed, giving huge flexibility in interoperable system design.

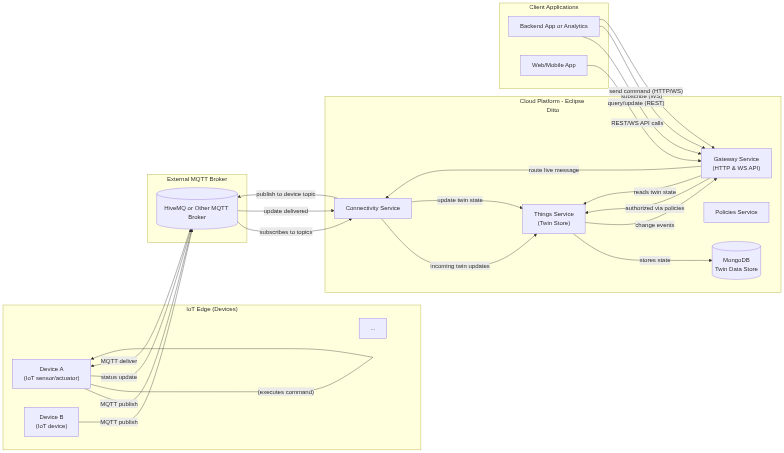

To better understand how these pieces fit, here’s a conceptual diagram of Ditto’s architecture in a scalable IoT deployment:
Figure: Eclipse Ditto in a scalable IoT deployment, connecting devices via MQTT and exposing twin APIs to applications
In this architecture, devices (Device A, B, …) publish telemetry to an MQTT broker. Ditto’s Connectivity service maintains a connection to that broker (subscribing to relevant topics) and thus receives device messages. The Things service updates the corresponding digital twin’s state in MongoDB, and any subscribed application clients are notified of the change (through the Gateway’s WebSocket/HTTP API). Conversely, an application can send a command via HTTP or WebSocket to the twin (through the Gateway). Ditto (Connectivity service) will publish that command to the broker on a topic the device is subscribed to, allowing the physical device to receive and act on it. Throughout, Policies ensure only authorized actions occur. This setup can scale horizontally – e.g., multiple instances of Things service and Connectivity service can be run to handle more load, since the architecture is modular and message-driven.
Use Cases Across Industries
One of the best ways to appreciate an interoperable digital twin layer is to consider how it can be applied in different industries. Because Eclipse Ditto is essentially domain-agnostic (you model whatever device or process as twins), it has seen use in everything from manufacturing to smart cities. Here are a few examples:
Manufacturing (Industry 4.0)
In industrial manufacturing, machines and assembly lines are equipped with numerous sensors (temperature, vibration, pressure, etc.). A digital twin platform like Ditto allows manufacturers to consolidate and analyze these data streams in real time by mirroring each machine or process as a twin. For example, each CNC machine on a factory floor could have a twin that continuously updates with its operating parameters and output quality metrics. By aggregating this data in the cloud, engineers can identify performance deviations and bottlenecks across the line. If a certain machine’s twin shows anomalies (e.g. vibration spiking), applications can trigger maintenance workflows or adjust process settings via commands to that twin. This leads to predictive maintenance (fixing issues before a breakdown) and process optimization. The connected twins can also collaborate – e.g., a production line twin might subscribe to events from machine twins to calculate overall throughput or coordinate their speeds. The end result is a more efficient, transparent production process that can quickly adapt to issues, which is a key promise of Industry 4.0.
Smart Buildings & Cities
In smart building or city scenarios, connected twins can represent infrastructure elements like HVAC systems, lighting, elevators, traffic lights, or parking sensors. By simulating a building with digital twins, facility managers can test changes and monitor usage patterns centrally. For instance, a Lighting twin in an office building could adjust brightness based on occupancy sensor twins and ambient light sensor data. A Room twin might aggregate data on how often the room is used versus its energy consumption, highlighting inefficiencies. Ditto’s interoperability is invaluable here: a city might have traffic cameras on one system, air quality sensors on another, and public displays on yet another – Ditto can integrate all via appropriate connections, giving a unified twin API for city applications to coordinate these systems. Imagine a Smart City twin that gets data from all traffic light twins (via MQTT), all public transit twins (via REST), etc., to optimize urban mobility. By bridging protocols, Ditto helps break down data silos (a common challenge in large organizations), allowing holistic management of buildings or city services.
Energy & Utilities
The energy sector, including utilities and renewable energy providers, deals with distributed assets like turbines, solar panels, transformers, and meters. Digital twins can dramatically improve monitoring and optimization of these assets. For example, a wind farm operator can create a twin for each turbine, tracking parameters like RPM, power output , and bearing temperatures in real time. Using Eclipse Ditto, these turbines could send MQTT telemetry that updates their twins, while a central application monitors all twins to detect patterns (like a drop in output coupled with a temperature rise indicating potential maintenance needs). In power grids, transformer stations and smart meters can be digitized to provide a live picture of grid conditions. With connected twins, one can implement predictive load balancing – if certain area’s energy consumption twin is spiking, the system might proactively redistribute load or dispatch storage resources. Ditto’s ability to maintain connections even in face of failures means it can be trusted as a resilient middleware in critical infrastructure. An example adoption: Othermo, a German start-up, uses Eclipse Ditto in their energy management platform, likely to unify data from various energy devices and perform optimizations. This shows how Ditto’s interoperability benefits modern energy solutions that require integrating IoT sensors, edge devices, and cloud analytics into one coherent system.
Insurance & Telematics
Even industries like insurance can leverage IoT and digital twins. A notable example is usage-based insurance for vehicles. Instead of installing a proprietary telematics unit in each car, insurers can gather driving data via mobile apps or connected car platforms and feed it into a digital twin of the vehicle/driver. Eclipse Ditto could ingest these data (speed, braking intensity, location etc. from the car’s sensors or phone) into a twin, and then an insurance application computes a dynamic risk score or premium from the twin’s state. Bosch’s IoT blog gives a use case: Usage-based insurance… the application can now be deployed in the cloud. The digital twin can be used to calculate the driver’s individual driving score in real time. Here interoperability is key because cars from different manufacturers output telemetry in different formats (some via MQTT, others via REST APIs from a connected vehicle platform). Ditto could normalize all that into a consistent twin model for the insurer’s backend to use. In the event of an accident, a claims adjuster might inspect the vehicle’s twin data (speed, acceleration at time of incident) to streamline the claims process itransition.com. Similarly, for property insurance, imagine water leak sensors, smoke detectors, and security cameras in a home all feeding into a House twin – giving insurers and homeowners a real-time risk dashboard and enabling automated alerts or interventions (like shutting off water via a smart valve twin if a leak is detected). By providing a vendor-neutral integration layer, Ditto makes these innovative insurance offerings feasible without developing one-off integrations for every device type.
Scalability & Protocol Flexibility with Ditto
Across all these use cases, a few themes stand out: the need to handle large scale (many devices/twins, high data volumes) and the need to accommodate heterogeneous technologies. Eclipse Ditto is uniquely equipped to handle both.
On scalability, Ditto is designed to run in containerized environments and scale horizontally. It only requires a Kubernetes (or similar container runtime) and a MongoDB cluster to get started. By increasing the number of instances of its microservices, you can scale to millions of devices. For example, Bosch’s SaaS built on Ditto runs across three different cloud environments serving enterprise customers. Ditto’s use of efficient messaging and CQRS patterns ensures it can handle high-throughput data ingestion and real-time processing. The framework also includes monitoring and metrics to track performance of connections and message flows, so operators can scale out specific services as needed. In short, Ditto is ready for production IoT workloads where reliability and scalability are paramount. It’s vendor-neutral and open source, meaning organizations can adopt it without licensing barriers and even contribute improvements. This open nature further future-proofs your digital twin strategy – you’re building on an Eclipse Foundation project with an active community and not locked into a proprietary IoT platform.
In terms of protocol and device flexibility, Ditto truly shines in multi-protocol interoperability. It can connect simultaneously to an MQTT broker, an AMQP queue, and even invoke an HTTP endpoint, integrating messages from all into the twin layer. Consider a scenario: you have legacy devices sending XML over HTTP, new sensors sending JSON over MQTT, and enterprise systems pushing events via Kafka – Ditto could be configured with three connections (one for an HTTP webhook that accepts XML and maps to twin updates, one MQTT, one Kafka), and apply mapping/transformation logic so that all update the same kinds of twin features. This means you don’t have to force all parts of your system to adopt one protocol or standard; Ditto meets each on its own terms and still provides a unified interface to your applications. It effectively decouples device connectivity from application logic. Developers can focus on business applications that interact with twins (e.g. a dashboard or an AI engine) without worrying if device X uses protocol Y – Ditto handles that in the connectivity layer.
Ditto is also forward-looking in embracing IoT standards for interoperability. A recent addition is support for the W3C Web of Things (WoT) standard, which defines a formal Thing Description JSON-LD format for describing device capabilities . Ditto can now produce WoT descriptions for its twins, meaning it can integrate in a WoT architecture as well, providing standardized meta-data for each twin’s properties, actions, and events. This further solidifies Eclipse Ditto’s role as an open interoperability layer – it’s aligning with emerging standards so that your digital twins can interface with other WoT-compatible components seamlessly.
Lastly, the flexibility extends to different deployment models and domains. Ditto can run in the cloud, on-premise, or even at the edge for certain use cases. Its multi-tenant support allows a single cluster to securely host twins for different teams or customers. The same core features that apply to an industrial IoT deployment can apply to healthcare or agriculture – anywhere you have physical assets to monitor/control. By using Eclipse Ditto as your digital twin communication layer, you equip your IoT solution with a scalable, protocol-agnostic, and robust backbone. This frees you to focus on the domain-specific logic (be it optimizing factory output, managing city traffic, or calculating insurance risk), while Ditto handles the heavy lifting of keeping device data flowing and in sync.
Summary
Eclipse Ditto provides a comprehensive framework for interoperable digital twins. It offers a modular, scalable architecture and a rich set of features (from twin modeling and search to secure policies and live messaging) that can be applied across industries. By abstracting device communication into a twin layer, it helps bridge the gap between operational technology (devices/field data) and information technology (cloud apps and analytics), which is the key challenge in IoT. The next post will dive into a hands-on example using Eclipse Ditto – creating a digital twin for an LED device and a controller application, and making them communicate via Ditto over MQTT and HTTP – to illustrate how these concepts come together in practice.
